Banding Nozzles

DG TeeJet^® Even

DRIFT GUARD EVEN FLAT SPRAY

Ideal for banding over the row or in row middles.

The DG TeeJet Even an be used for soil applied and systemic herbicide applications. Available in 95° non-tapered spray pattern ideal for banding over the row or in row middles.

BENEFITS
FEATURES

BENEFITS

Excellent for pre-emerge herbicides and band application of surface applied herbicides.
Excellent for post-emerge systemic herbicides and banding systemic herbicides at lower pressures.
Good for post-emerge contact herbicides and banding application of contact herbicides at higher pressures.

FEATURES

Non-tapered flat spray pattern with a 95° angle providing even coverage without overlapping.
Pre-orifice design produces large droplets to reduce drift.
Available with stainless steel insert, polymer holder and pre-orifice with VisiFlo color-coding in five capacities.

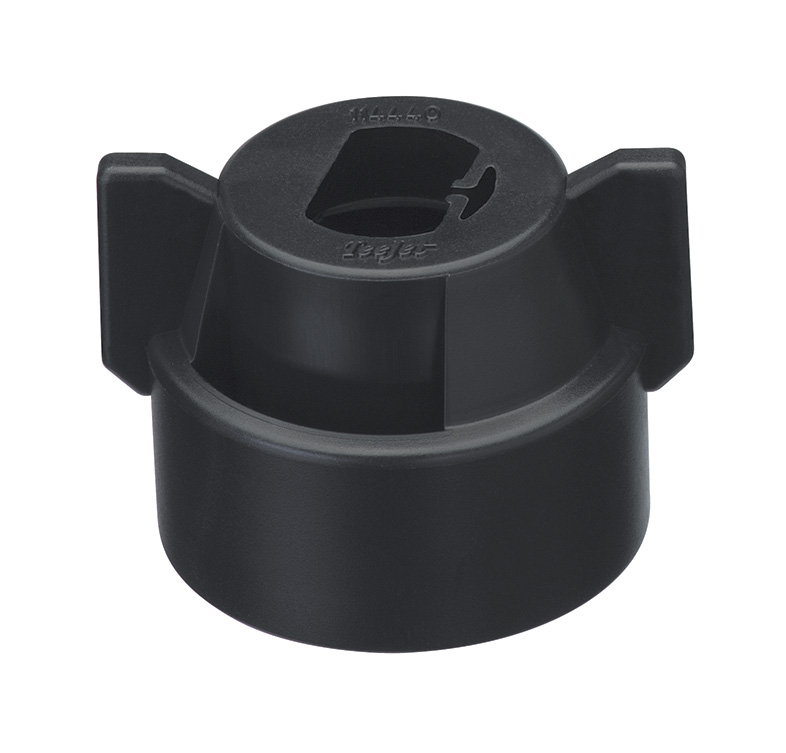

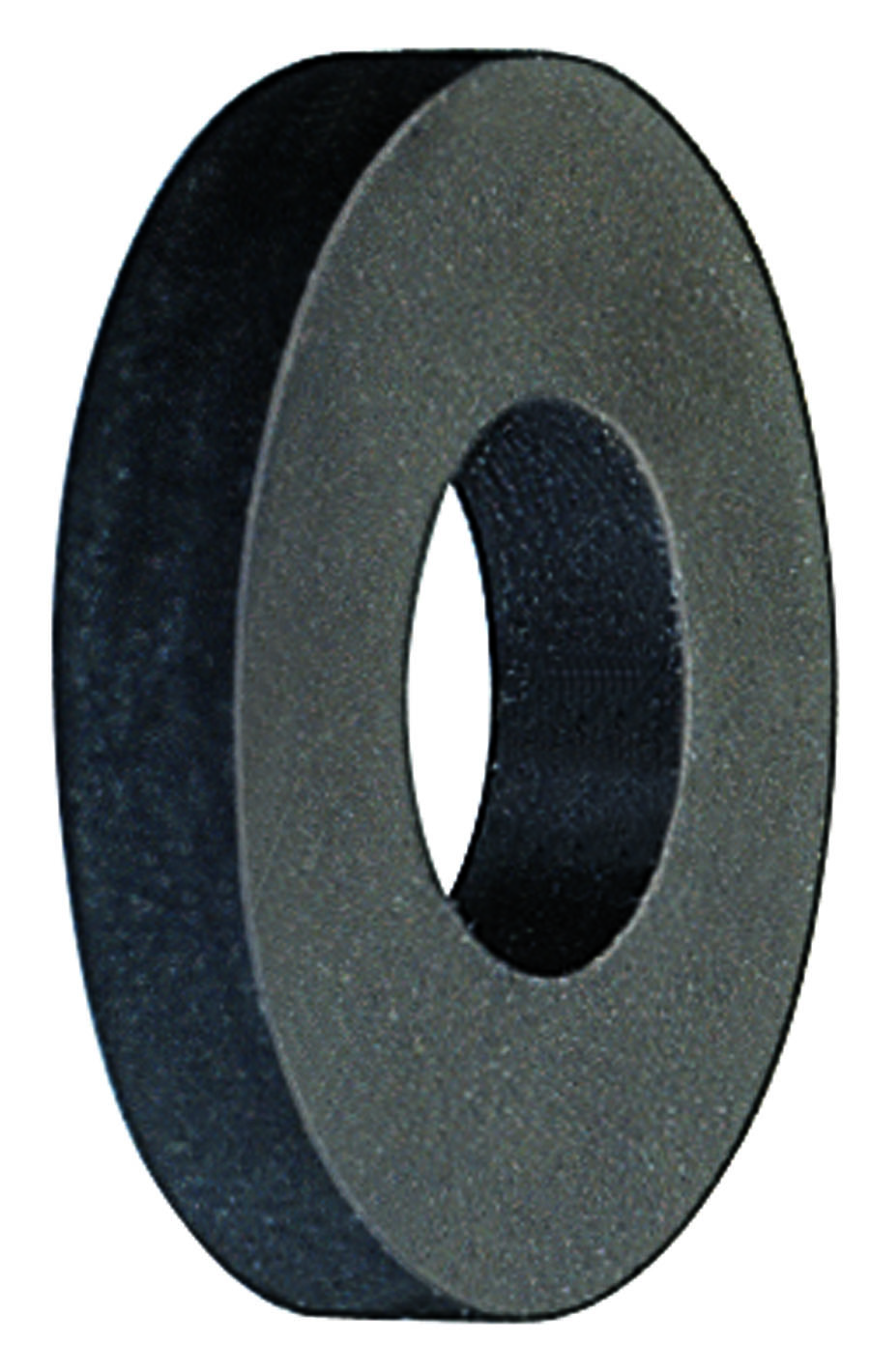

Automatic spray alignment with 114441A-*-CELR Quick TeeJet® cap and gasket.

PERFORMANCE

Spray Pattern

Droplet Size Classification

F – Fine

M – Medium

C – Coarse

Spray Height

Height	Spacing	GPA conversion factors (20")	GPA conversion factors (30")
4"	8"	2.50	3.75
5"	10"	2.00	3.00
5"	12"	1.67	2.50
7"	15"	1.33	2.00

Recommended Pressure Range

30-60 PSI

Materials Available

VS – Stainless Steel

APPLICATIONS

HERBICIDE

SOIL APPLIED

EXCELLENT

SYSTEMIC

EXCELLENT

FUNGICIDE

SYSTEMIC

GOOD

INSECTICIDE

SYSTEMIC

GOOD

DRIFT CONTROL

VERY GOOD

DROPLET SIZE AND APPLICATION RATE

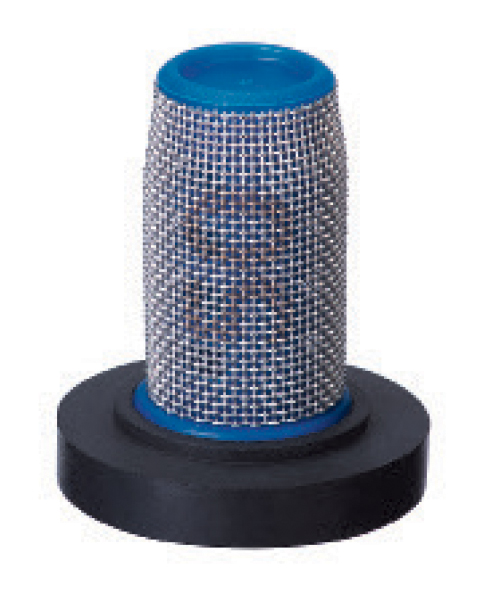

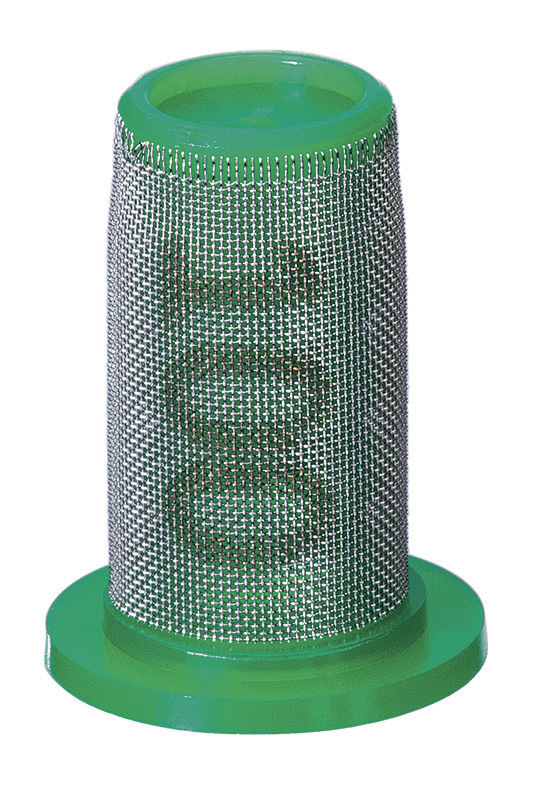

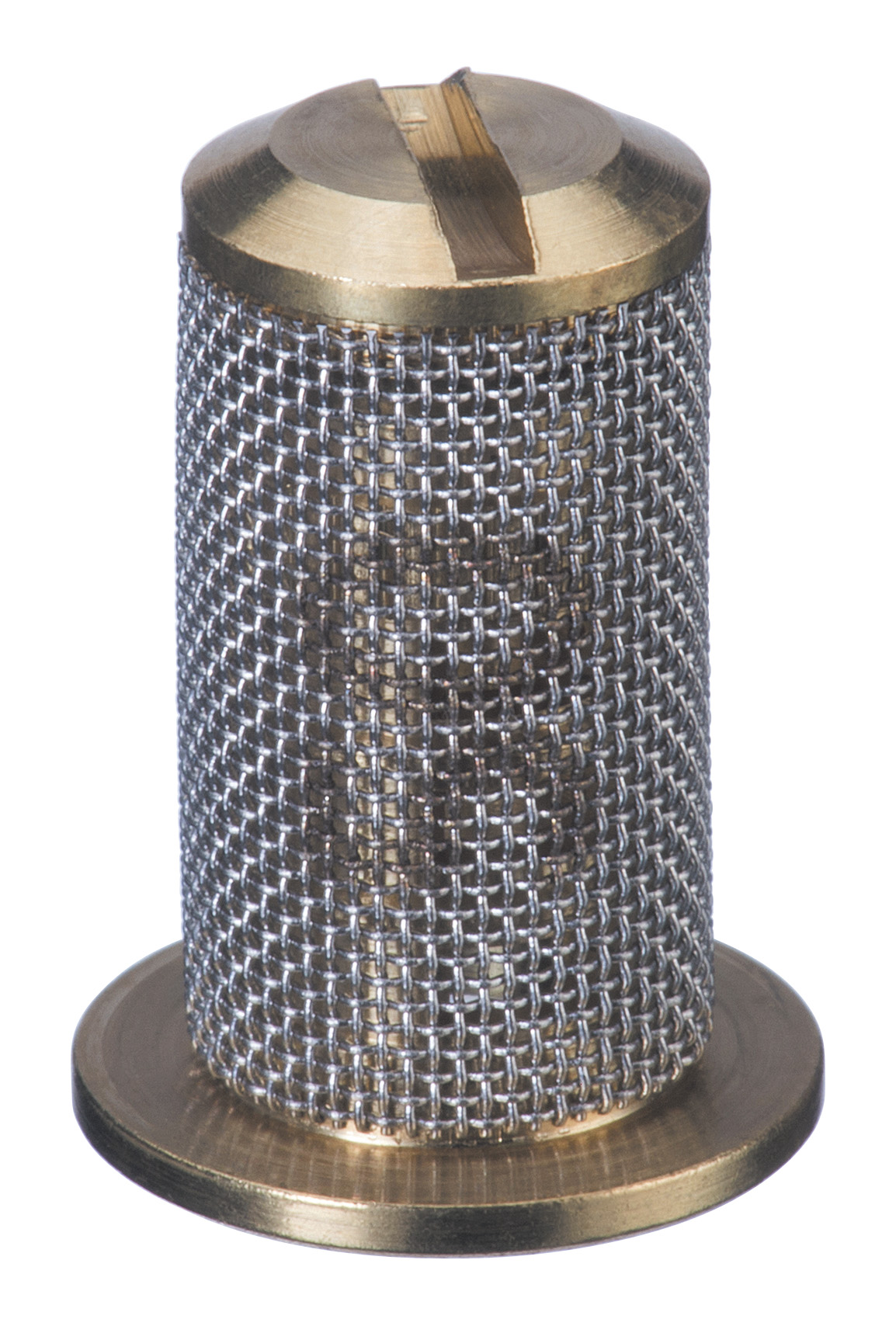

TIP PART NO. (STRAINER MESH SIZE)	PSI	DROP SIZE	CAPACITY ONE NOZZLE IN GPM	CAPACITY ONE NOZZLE OZ./MIN.	APPLICATION RATE FOR 30" SPRAY TIP SPACING
TIP PART NO. (STRAINER MESH SIZE)	PSI	DROP SIZE	CAPACITY ONE NOZZLE IN GPM	CAPACITY ONE NOZZLE OZ./MIN.	3 MPH	3.5 MPH	4 MPH	4.5 MPH	5 MPH	5.5 MPH	6 MPH	6.5 MPH	7 MPH	7.5 MPH	8 MPH	8.5 MPH
DG95015EVS (100)	30	M	0.13	17	8.6	7.4	6.4	5.7	5.1	4.7	4.3	4.0	3.7	3.4	3.2	3.0
	40	M	0.15	19	9.9	8.5	7.4	6.6	5.9	5.4	5.0	4.6	4.2	4.0	3.7	3.5
	50	F	0.17	22	11.2	9.6	8.4	7.5	6.7	6.1	5.6	5.2	4.8	4.5	4.2	4.0
	60	F	0.18	23	11.9	10.2	8.9	7.9	7.1	6.5	5.9	5.5	5.1	4.8	4.5	4.2
DG9502EVS (50)	30	M	0.17	22	11.2	9.6	8.4	7.5	6.7	6.1	5.6	5.2	4.8	4.5	4.2	4.0
	40	M	0.20	26	13.2	11.3	9.9	8.8	7.9	7.2	6.6	6.1	5.7	5.3	5.0	4.7
	50	M	0.22	28	14.5	12.4	10.9	9.7	8.7	7.9	7.3	6.7	6.2	5.8	5.4	5.1
	60	M	0.24	31	15.8	13.6	11.9	10.6	9.5	8.6	7.9	7.3	6.8	6.3	5.9	5.6
DG9503EVS (50)	30	M	0.26	33	17.2	14.7	12.9	11.4	10.3	9.4	8.6	7.9	7.4	6.9	6.4	6.1
	40	M	0.30	38	19.8	17.0	14.9	13.2	11.9	10.8	9.9	9.1	8.5	7.9	7.4	7.0
	50	M	0.34	44	22	19.2	16.8	15.0	13.5	12.2	11.2	10.4	9.6	9.0	8.4	7.9
	60	M	0.37	47	24	21	18.3	16.3	14.7	13.3	12.2	11.3	10.5	9.8	9.2	8.6
DG9504EVS (50)	30	C	0.35	45	23	19.8	17.3	15.4	13.9	12.6	11.6	10.7	9.9	9.2	8.7	8.2
	40	M	0.40	51	25	23	19.8	17.6	15.8	14.4	13.2	12.2	11.3	10.6	9.9	9.3
	50	M	0.45	58	30	25	22	19.8	17.8	16.2	14.9	13.7	12.7	11.9	11.1	10.5
	60	M	0.49	63	32	28	24	22	19.4	17.6	16.2	14.9	13.9	12.9	12.1	11.4
DG9505EVS (50)	30	C	0.43	55	28	24	21	18.9	17.0	15.5	14.2	13.1	12.2	11.4	10.6	10.0
	40	C	0.50	64	33	28	25	22	19.8	18.0	16.5	15.2	14.1	13.2	12.4	11.6
	50	M	0.56	72	37	32	28	25	22	20	18.5	17.1	15.8	14.8	13.9	13.0
	60	M	0.61	78	40	35	30	27	24	22	20	18.6	17.3	16.1	15.1	14.2
