Broadcast Nozzles
AIC TeeJet®
AIR INDUCTION FLAT SPRAY
Perfect spray distribution with maximum drift control.
The Air Induction Combined (AIC) is an AI TeeJet® nozzle molded into Quick TeeJet® cap for precise spray alignment. The flat spray tip design is best suited for broadcast spraying of herbicides, particularly in drift-sensitive conditions making it a good choice for applying fungicides, insecticides, herbicides, and fertilizers.
BENEFITS
- Large droplets are produced through the use of a venturi air aspirator, resulting in less drift.
- Ideal for sprayers equipped with automatic control system.
- Excellent for pre-emerge surface applied herbicides- minimum spray pressure of 30 PSI.
- Excellent for post-emerge systemic herbicides- minimum pressure of 30 PSI.
- Good for post-emerge contact herbicides- typical pressure of 80 PSI and higher.
- Improved gasket retention.
FEATURES
- One piece tip/cap construction with separate removable pre-orifice for ease of use.
- Tip insert offered in stainless steel (VS), polymer (VP), and ceramic (VK). Ceramic (VK) version also features a ceramic pre-orifice insert.
- Caps, pre-orifices, & polymer tip inserts feature VisiFlo color coding.
- Tip insert produces tapered edge flat spray pattern for uniform coverage in broadcast spraying.
PERFORMANCE
Spray Pattern
Droplet Size Classification
C – Coarse
VC – Very Coarse
XC – Extremely Coarse
UC – Ultra Coarse
Spray Height
| Angle | Height (20" spacing) |
|---|---|
| 110° | 20" |
Recommended Pressure Range
30–115 PSI
Materials Available
VS – Stainless Steel
VP – Polymer
VK – Ceramic
APPLICATIONS
HERBICIDE
SOIL APPLIED
VERY GOOD
SYSTEMIC
EXCELLENT
FUNGICIDE
SYSTEMIC
GOOD
INSECTICIDE
SYSTEMIC
VERY GOOD
FERTILIZER
BROADCAST
VERY GOOD
DRIFT CONTROL
EXCELLENT
TYPES / SIZES

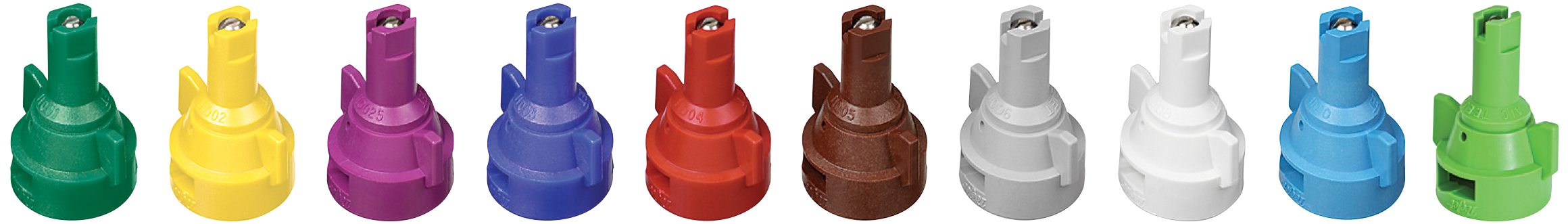

AIC TeeJet® 110° SS Stainless Steel
ISO Standard Color coding for tip capacity
Catalog 52, Broadcast Nozzles, AIC TeeJet®

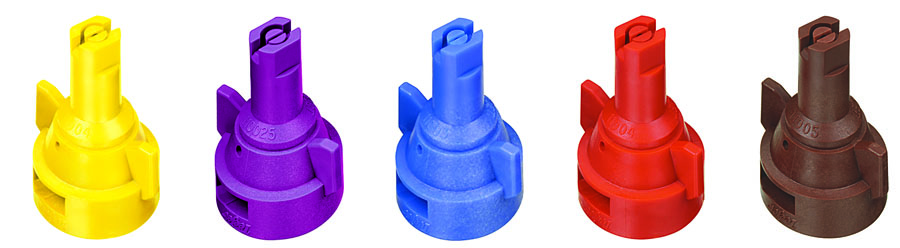

AIC TeeJet® 110° VP Polymer
ISO Standard Color coding for tip capacity
Catalog 52, Broadcast Nozzles, AIC TeeJet®

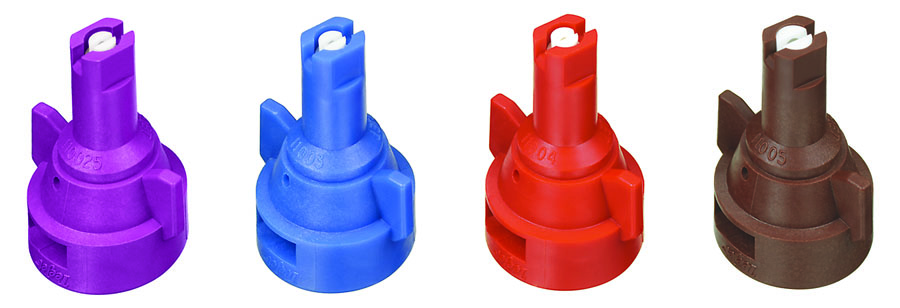

AIC TeeJet® 110° VK Ceramic
ISO Standard Color coding for tip capacity
