Broadcast Nozzles
TwinJet®
TWIN FLAT SPRAY
TJ60-8003VS
Provides front and rear surface coverage without sacrificing uniformity.
The TwinJet® (TJ60) is ideal for providing a penetrating, thorough coverage with post-emerge herbicides. Good pre-emerge coverage on cloddy fields and fields covered with crop residue.
BENEFITS
- Pulse Width Modulation (PWM) Approved.
- Provides front and rear surface coverage of crop or weed without sacrificing uniformity.
- Ideal for providing a penetrating, thorough coverage with post-emerge herbicides.
- Good pre-emerge coverage on cloddy fields and fields covered with crop residue.
FEATURES
- Penetrates crop residue or dense foliage.
- Smaller droplets for thorough coverage.
- Better spray distribution along boom than with hollow cone nozzles.
- Available in stainless steel with VisiFlo® color-coding in 65°, 80° and 110° spray angles.
- Automatic spray alignment with 114443A-*-CELR Quick TeeJet® cap and gasket.
PERFORMANCE
Spray Pattern
Droplet Size Classification
VF – Very Fine
F – Fine
M – Medium
Spray Height
| Angle | Height (50cm spacing) |
|---|---|
| 65° | 90cm |
| 80° | 75cm |
| 110° | 50cm |
Recommended Pressure Range
2–4 bar
Materials Available
VS – Stainless Steel
APPLICATIONS
HERBICIDE
CONTACT
EXCELLENT
FUNGICIDE
CONTACT
EXCELLENT
INSECTICIDE
CONTACT
EXCELLENT
PWM APPROVED
TYPES / SIZES

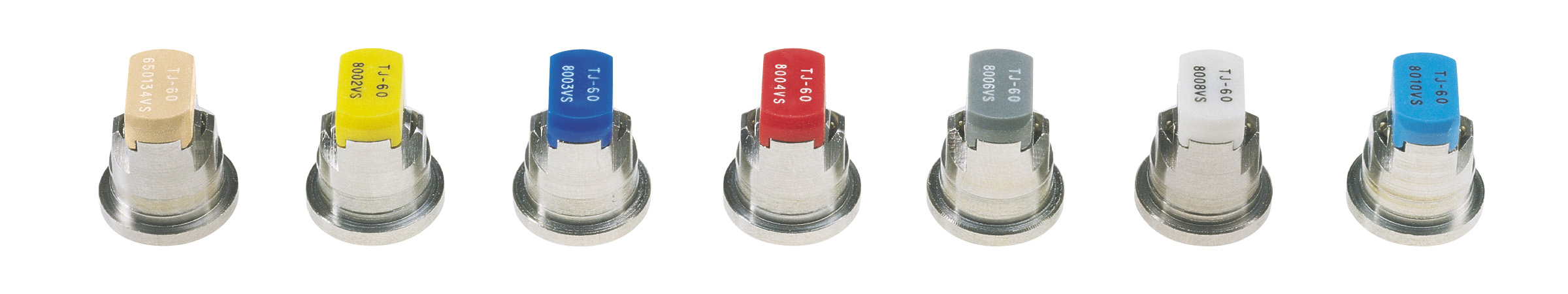

80° TwinJet® VS Stainless Steel

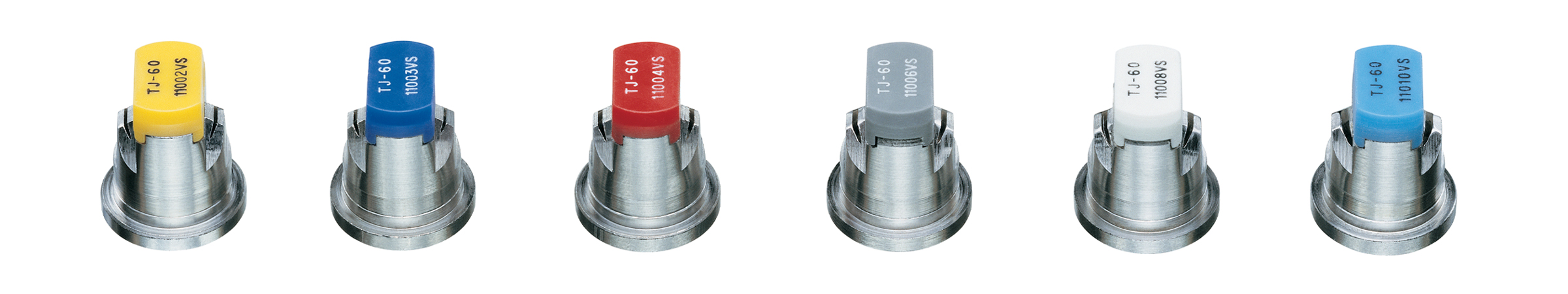

110° TwinJet® VS Stainless Steel
ISO Standard Color coding for tip capacity
ACCESSORIES
| Cap with Gasket | Strainer with Gasket | Strainer |
|---|---|---|
 |
 |
 |
| 114443A-*-CELR ** Color Code |
55215-*-** ** Filter Size |
8079-PP-* * Filter Size |
| Brass Strainer | Stainless Steel Strainer |
|---|---|
 |
 |
| 5053-*-SS * Filter Size |
6051-SS-* * Filter Size |
