Spray Tips

AI3070 TeeJet^®

AIR INDUCTION DUAL PATTERN FLAT SPRAY

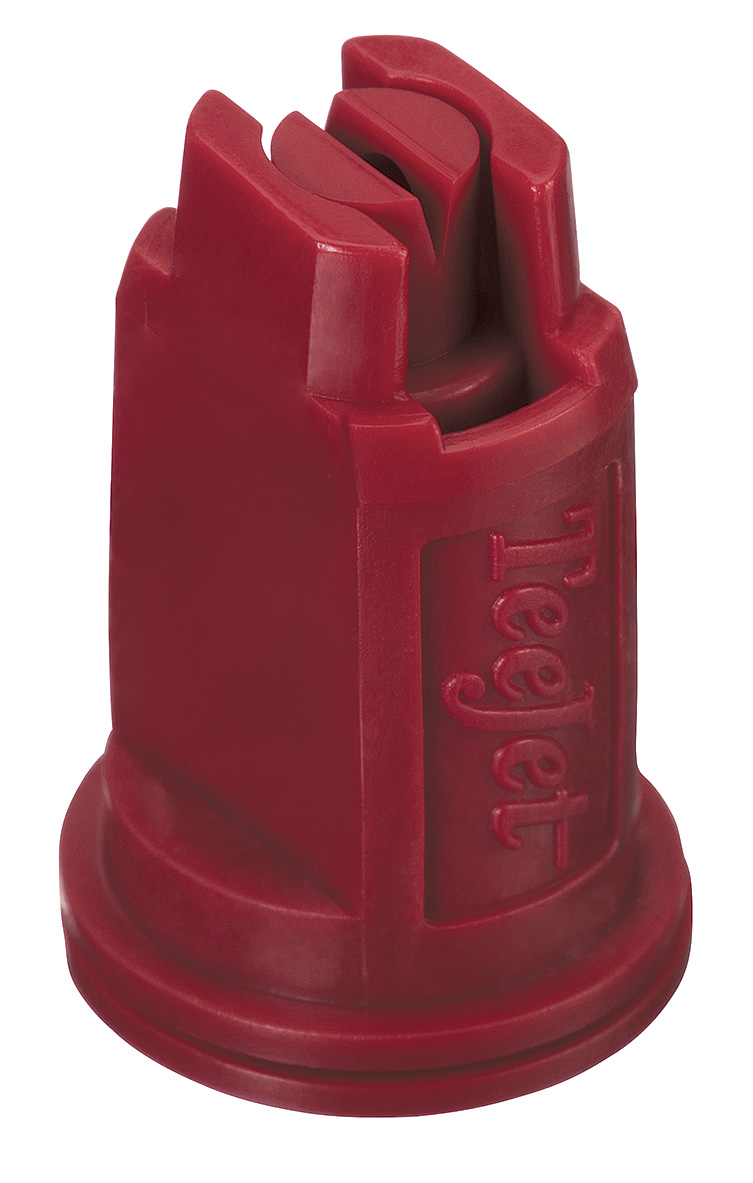

AI-307004VP

Air Induction Dual Pattern Flat Spray Tips.

The AI3070 TeeJet^® dual flat spray tip, utilizing a patent-pending design, provides two spray patterns at complementary angles of 30º and 70º from vertical making it ideal for fungicide application and disease control in cereal crops.

BENEFITS
FEATURES

BENEFITS

Provides excellent penetration and seed head coverage for fungicide spraying on cereal crops.
AI3070 produces two wide angle, flat spray patterns for uniform coverage in broadcast applications.
Drift resistant droplets are produced through the use of a Venturi air aspirator.
Large round free passages minimize clogging.
Suggested spray pressure range of 1.5 - 6 bar (20-90 PSI).

FEATURES

30° forward tilted spray penetrates dense crop canopies, while the backward tilted 70° spray maximizes coverage of the crop seed head.
All acetal construction for excellent chemical and wear resistance.
Available in six VisiFlo® Polymer (VP) capacities.
Removable pre-orifice for fast and easy cleaning.
Automatic spray alignment with Quick TeeJet cap and gasket 98579-1-NYR.
