Air Induction Turbo TwinJet®

Carousel example: title color (white), text color (yellow), background color (dark blue), first button color (default blue), second button color (white), transparent product image (.png) Optimal image dimension ratio should be (960x620)

See it in action (YouTube) View the catalog (PDF)

Title: Corn Crop Development

Content: Informational text to go here

Cotton Crop Development

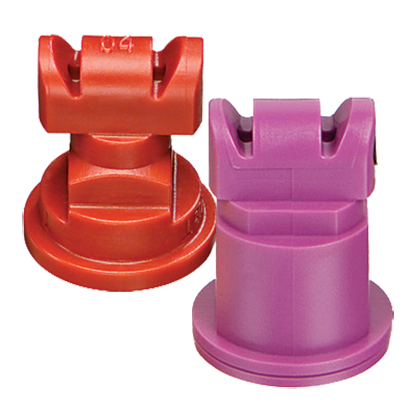

TTJ60 and AITTJ60

BENEFITS

  • Produce less driftable fine droplets than a standard flat fan spay tip.
  • Excellent for penetration of dense canopy and achieving thorough coverage.
  • Two 110º spray patterns spraying 60° apart, one in the forward direction of travel; one in the aft.
  • Pulse Width Modulation (PWM) Approved.
  • Flow rates and droplet sizes available to meet a wide range of applications.

FEATURES

  • Dual tapered edge spray tip with air-induction technology.
  • Available in nine VisiFlo® Polymer (VP) capacities.
  • Automatic spray alignment with Quick TeeJet cap and gasket 114443A-*-CELR (02 to 06) or 114502A-*-CELR (08 to 15).
Find your local distributor dealer contact information Contact

Wide Operating Pressure

20-90 PSI: A single tip can cover a wide range of ground speeds and application volumes

Droplet Size Versatility

Medium to Very Coarse droplets. Droplet size may vary in accordance with tip capacity and spray pressure.)

Superior Spray Distribution

In the field excellent coefficient of variation.

115880 DynaJet® Valve
191500 DynaJet® Valve
116280 DynaJet® High Flow Valve
116950 e-ChemSaver® ES Valve
115880 DynaJet® Valve
✓
191500 DynaJet® Valve
✓
116280 DynaJet® High Flow Valve
✓
116950 e-ChemSaver® ES Valve
✓
115880 DynaJet® Valve
✓
191500 DynaJet® Valve
✓
116280 DynaJet® High Flow Valve
✓
116950 e-ChemSaver® ES Valve
–
115880 DynaJet® Valve
6-12 ms
191500 DynaJet® Valve
6-12 ms
116280 DynaJet® High Flow Valve
6-12 ms
116950 e-ChemSaver® ES Valve
12-20 ms
115880 DynaJet® Valve
0.6 GPM (2.27 LPM)
191500 DynaJet® Valve
0.6 GPM (2.27 LPM)
116280 DynaJet® High Flow Valve
0.9 GPM (3.4 LPM)
116950 e-ChemSaver® ES Valve
0.7 GPM (2.8 LPM)
115880 DynaJet® Valve
0.8 GPM (3.18 LPM)
191500 DynaJet® Valve
0.8 GPM (3.18 LPM)
116280 DynaJet® High Flow Valve
1.3 GPM (4.9 LPM)
116950 e-ChemSaver® ES Valve
1.1 GPM (4.1 LPM)
115880 DynaJet® Valve
✓
191500 DynaJet® Valve
✓
116280 DynaJet® High Flow Valve
✓
116950 e-ChemSaver® ES Valve
✓
115880 DynaJet® Valve
✓
191500 DynaJet® Valve
✓
116280 DynaJet® High Flow Valve
✓
116950 e-ChemSaver® ES Valve
✓

The functionality of this table is unacceptable. Absolutely useless!

Herbicide

Herbicide

Card Details:

Fungicide

Fungicide

Insecticide

Insecticide

The functionality of this table is unacceptable. Absolutely useless!

Accessories

Quick TeeJet Cap (114442)

Cap with Gasket

114443A-*-CELR (02 to 06) or
114502A-*-CELR (08 to 15)
* Color Code

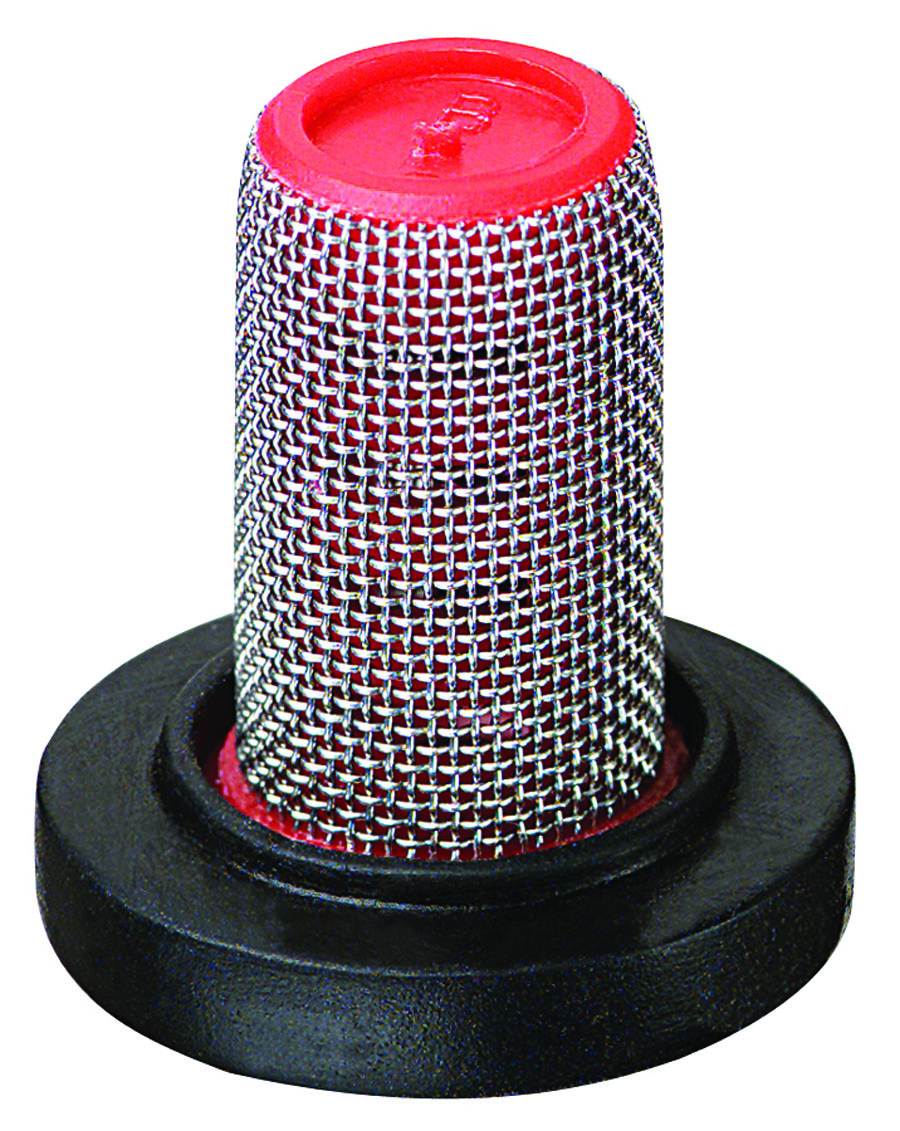

Strainer

8079-PP-*
* Filter Size

Strainer with Gasket

55215-*-**
** Filter Size
* Gasket Material
