Broadcast Nozzles

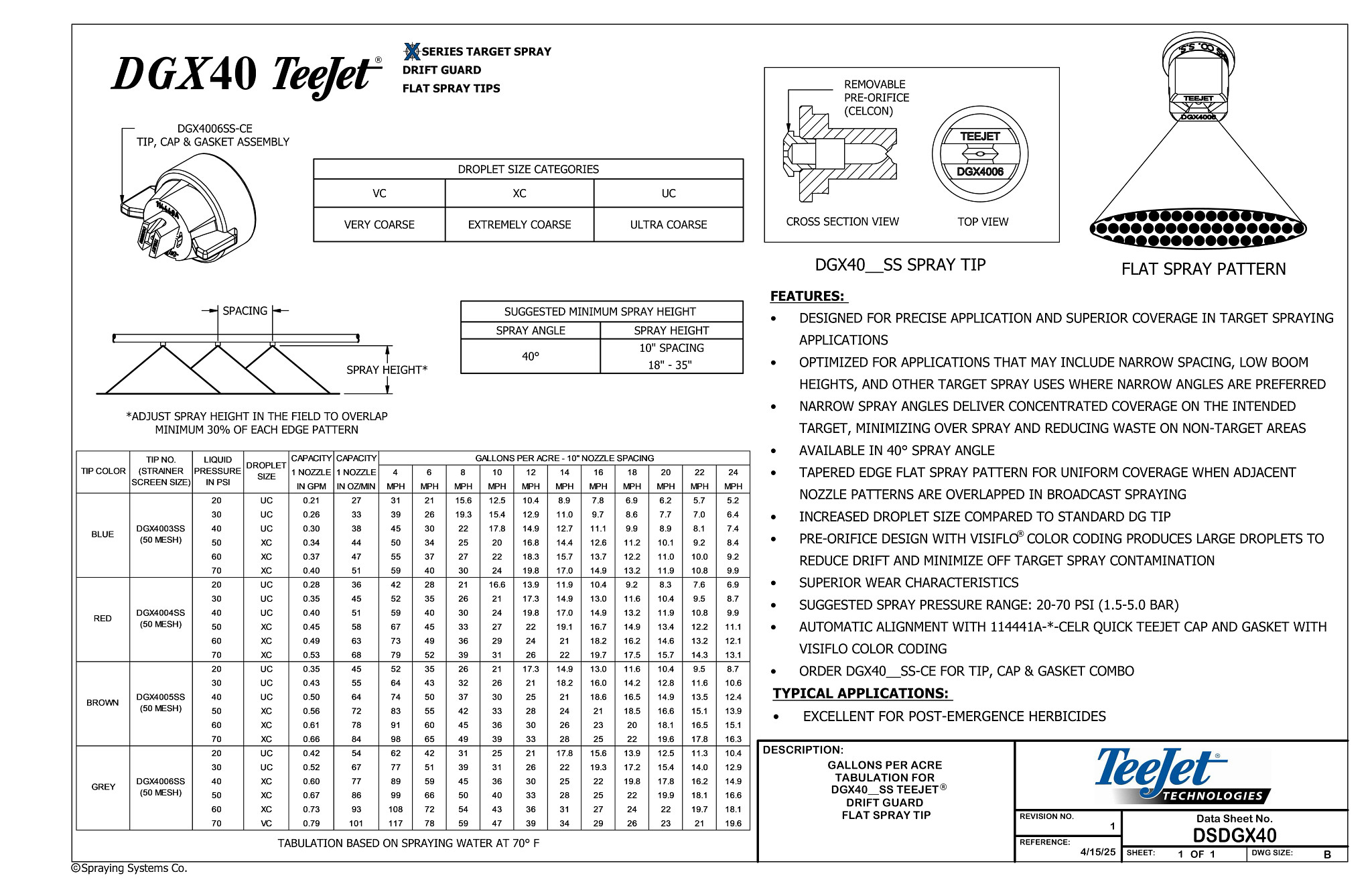

DGX40 TeeJet^®

FLAT SPRAY

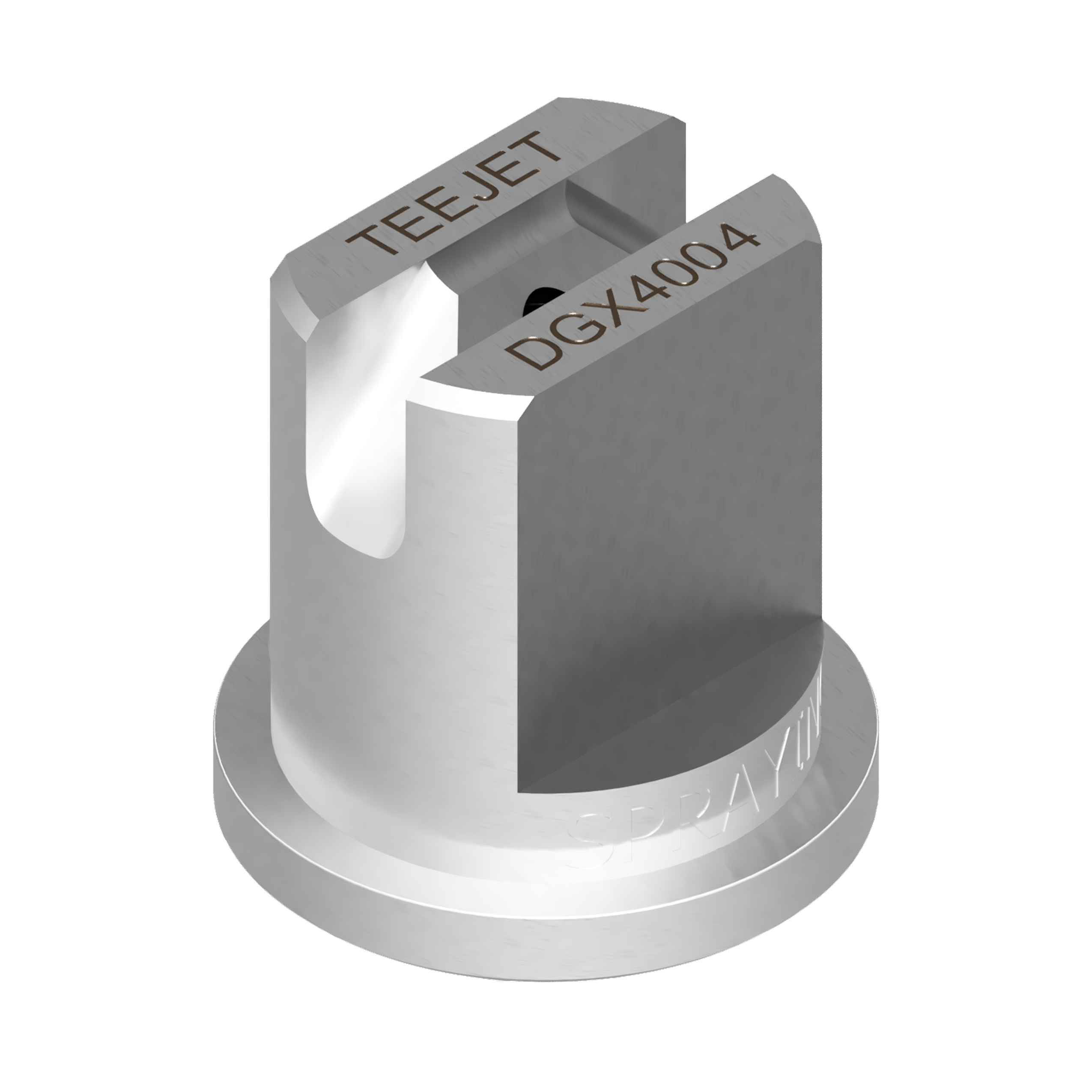

DGX4004

HERBICIDE

SYSTEMIC

EXCELLENT

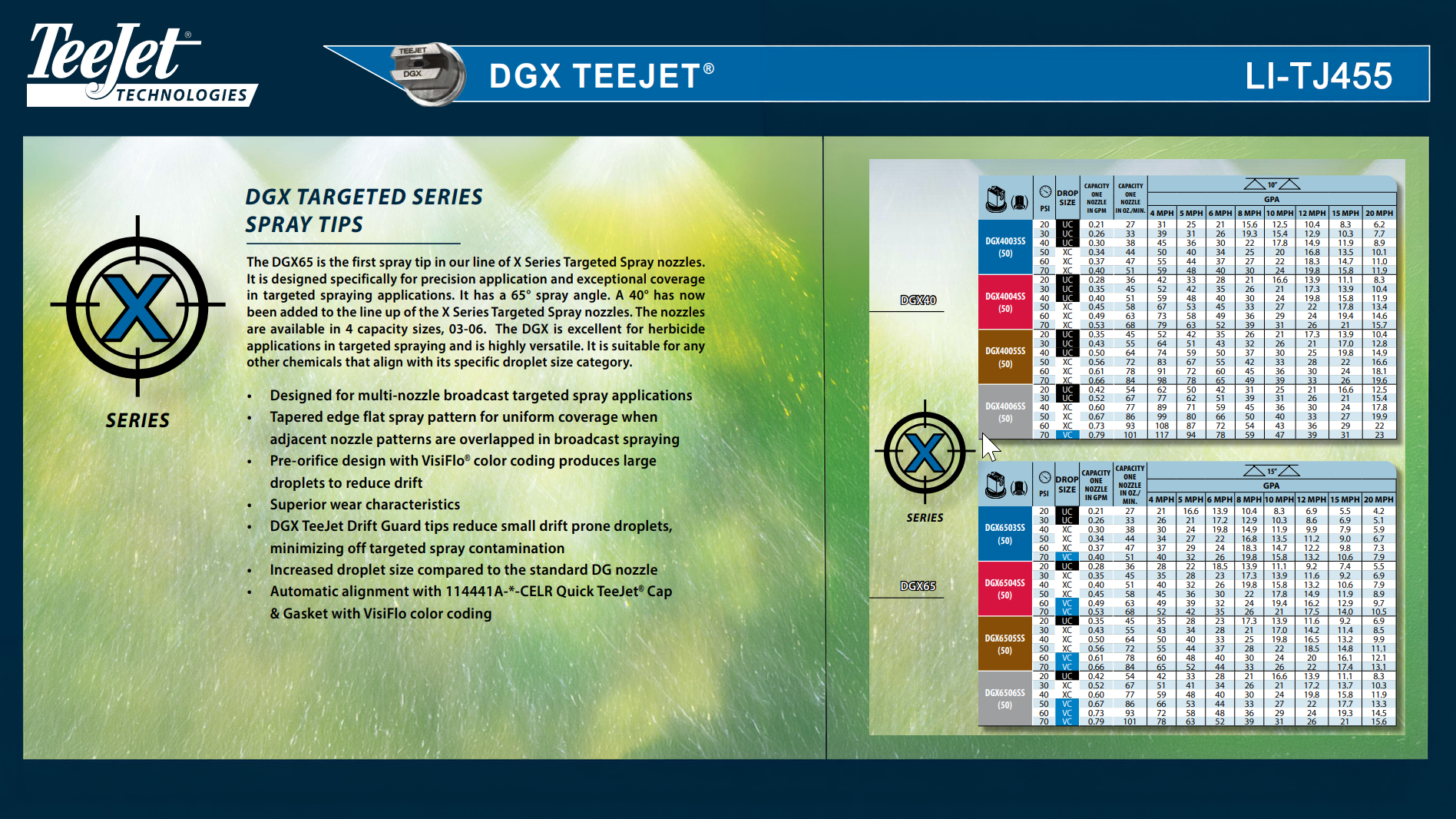

Drift Guard X Series

The DGX40 TeeJet^® is the latest addition to our line of X Series Target Spray nozzles. It is designed specifically for precision application and exceptional coverage in target spraying applications. The 40° spray angle is excellent for herbicide applications in target spraying and is highly versatile. It is also suitable for any other chemicals that align with its specific droplet size category.

BENEFITS
FEATURES

BENEFITS

Designed for multi-nozzle broadcast target spray applications.
Excellent for herbicide applications in target spraying.
Superior wear characteristics.
DGX40 TeeJet Drift Guard tips reduce small drift prone droplets, minimizing off target spray contamination.
Increased droplet size compared to the standard DG nozzle.

FEATURES

40° spray angle and is available in 4 capacity sizes, 03-06.
Tapered edge flat spray pattern for uniform coverage when adjacent nozzle patterns are overlapped in broadcast spraying.
Pre-orifice design with VisiFlo^® color coding produces large droplets to reduce drift.
Suggested spray pressure range: 20-70 PSI.
Automatic alignment with 114441A-*-CELR Quick TeeJet^® Cap & Gasket with VisiFlo color coding.

PERFORMANCE

Spray Pattern

Droplet Size Classification

VC – Very Coarse

XC – Extremely Coarse

UC – Ultra Coarse

Spray Height

Angle	Height
40°	10"

Recommended Pressure Range

20-70 PSI

Materials Available

VS – Stainless Steel

DROPLET SIZE AND APPLICATION RATE

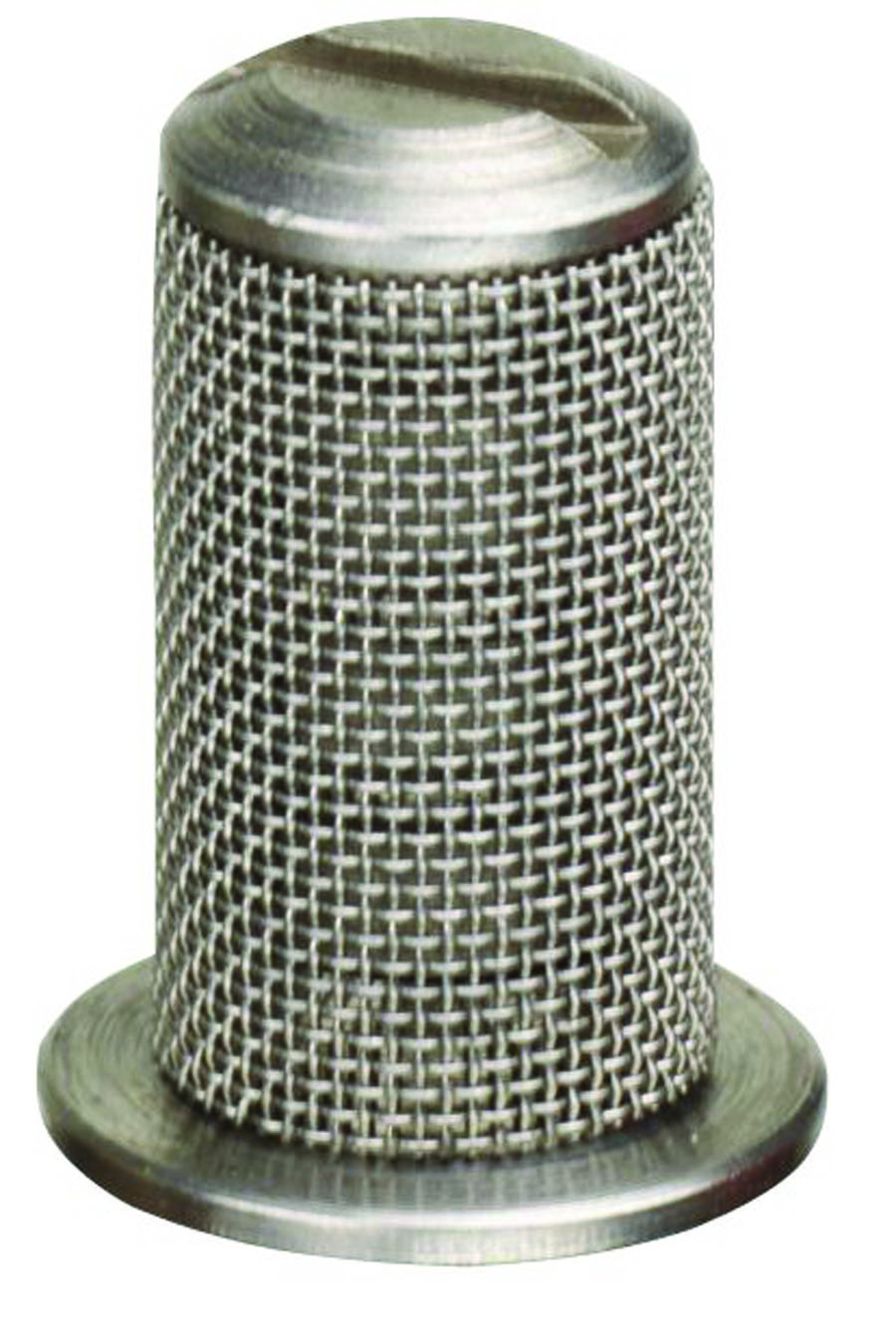

TIP PART NO. (STRAINER MESH SIZE)	PSI	DROP SIZE	CAPACITY ONE NOZZLE IN GPM	CAPACITY ONE NOZZLE OZ./MIN.	APPLICATION RATE FOR 10" SPRAY TIP SPACING
					GALLONS PER ACRE (GPA)
					4 MPH	5 MPH	6 MPH	8 MPH	10 MPH	12 MPH	15 MPH	20 MPH
DGX4003SS (50)	20	UC	0.21	27	31	25	21	15.6	12.5	10.4	8.3	6.2
	30	UC	0.26	33	39	31	26	19.3	15.4	12.9	10.3	7.7
	40	UC	0.30	38	45	36	30	22	17.8	14.9	11.9	8.9
	50	XC	0.34	44	50	40	34	25	20	16.8	13.5	10.1
	60	XC	0.37	47	55	44	37	27	22	18.3	14.7	11
	70	XC	0.40	51	59	48	40	30	24	19.8	15.8	11.9
DGX4004SS (50)	20	UC	0.28	36	42	33	28	21	16.6	13.9	11.1	8.3
	30	UC	0.35	45	52	42	35	26	21	17.3	13.9	10.4
	40	UC	0.40	51	59	48	40	30	24	19.8	15.8	11.9
	50	XC	0.45	58	67	53	45	33	27	22	17.8	13.4
	60	XC	0.49	63	73	58	49	36	29	24	19.4	14.6
	70	XC	0.53	68	79	63	52	39	31	26	21	15.7
DGX4005SS (50)	20	UC	0.35	45	52	42	35	26	21	17.3	13.9	10.4
	30	UC	0.43	55	64	51	43	32	26	21	17	12.8
	40	UC	0.50	64	74	59	50	37	30	25	19.8	14.9
	50	XC	0.56	72	83	67	55	42	33	28	22	16.6
	60	XC	0.61	78	91	72	60	45	36	30	24	18.1
	70	XC	0.66	84	98	78	65	49	39	33	26	19.6
DGX4006SS (50)	20	UC	0.42	54	62	50	42	31	25	21	16.6	12.5
	30	UC	0.52	67	77	62	51	39	31	26	21	15.4
	40	XC	0.60	77	89	71	59	45	36	30	24	17.8
	50	XC	0.67	86	99	80	66	50	40	33	27	19.9
	60	XC	0.73	93	108	87	72	54	43	36	29	22
	70	VC	0.79	101	117	94	78	59	47	39	31	23
