Spray Tips

TTI TwinJet®

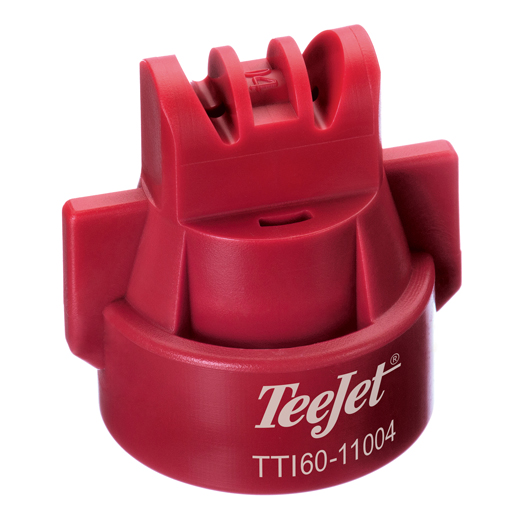

TTI60-11004VP

TTI60-11004VP

Twin Spray Coverage with Maximum Drift Control!

PWM approved logo

The TTI TwinJet® (TTI60) single piece tip & cap design allows for fast, easy installation and, unlike some other twin sprays, has a very compact size.

TTI60 series

BENEFITS

  • Ideal for Dicamba applications including Engenia®, Tavium® and XtendiMax® Herbicides.
  • Extremely large drift resistant droplets are produced through the use of a venturi air aspirator.
  • Pulse Width Modulation (PWM) Approved.
  • Provides excellent drift control and produces minimal driftable fines — less than 1.5%.*
  • All in one molded nozzle and Quick TeeJet® cap design provides automatic spray alignment.

* -04 capacity spraying water at 40 PSI. Driftable fines defined as droplets smaller than 150 microns

FEATURES

  • TTI60 produces two 110° wide angle, flat spray patterns for uniform coverage in broadcast applications.
  • 60° angle between leading and trailing patterns for increased canopy penetration and leaf coverage.
  • Removable pre-orifice allows for disassembly and cleaning.
  • Available in seven VisiFlo® Polymer (VP) capacities.
  • Replacement gasket: CP19438-1-EPR

TYPES / SIZES

TTI60 TwinJet® VP Polymer

TTI60 TwinJet (TTI60) Series (VP)

Nozzle Filter: TTI110015 = Filter 100 Mesh | TTI11002 and other capacities = Filter 50 Mesh
ISO Standard Color coding for tip capacity

Catalog 52, Broadcast Nozzles, TTI60 TwinJet®

ACCESSORIES

Gasket Strainer with Gasket Strainer
CP19438-1-EPR 55215-50-EPR Strainer 8079-PP-100
CP19438-1-EPR 55215-*-**

** Filter Size
* Gasket Material

8079-PP-*

* Filter Size

Brass Strainer Stainless Steel Strainer
5053-*-SS 6051-SS-100
5053-*-SS

* Filter Size

6051-SS-*

* Filter Size
